<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<html>
<head>
<title>重量曲线图 - www.jb200.com</title>
<script type="text/
javascript" src="Lib/Scripts/
jquery-1.7.2.min.js"></script>
<script type="text/javascript">
$(function () {
var splinechart;
$(document).ready(function () {
splinechart = new Highcharts.Chart({
chart: {
renderTo: 'splineContainer',
type: 'spline',
margin: [25, 30, 70, 50]
},
title: {
text: '体重',
x: 50,
y: 10,
style: {
display: 'none'
}
},
color: [
'#006ebe'
],
subtitle: {
style: {
display: 'none'
}
},
xAxis: {
lineWidth: 1,
lineColor: '#dfe7ef',
gridLineWidth: 0,
lineColor: '#000000',
startOnTick: true,
tickPixelInterval: 110,
type: 'datetime',
labels: {
rotation: -45,
y: 40,
style: {
color: '#000000',
fontSize: '8px',
fontWeight: 'normal'
}
},
tickColor: '#000000',
tickLength: 5,
tickWidth: 1,
dateTimeLabelFormats: {
day: '%Y-%m-%d',
week: '%Y-%m-%d',
month: '%Y-%m-%d',
year: '%Y-%m-%d'
},
title: {
style:
{
display: 'none'
}
}
},
yAxis: {
allowDecimals: true,
startOnTick: true,
endOnTick: true,
lineWidth: 1,
gridLineWidth:0,
gridLineColor: '#d3d3d3',
lineColor: '#000000',
tickColor: '#000000',
tickLength: 5,
tickWidth: 1,
title: {
text: '重量(kg)',
style: {
color: '#02528b',
fontSize: '12px',
fontWeight: 'normal'
}
},
labels: {
style: {
color: '#000000',
fontSize: '10px',
fontWeight: 'normal'
}
}
},
legend: {
layout: 'horizontal',
backgroundColor: '#ffffff',
align: 'right',
verticalAlign: 'top',
x: 0,
y: -10,
floating: true,
shadow: false,
borderWidth: 0
},
tooltip: {
shared: true,
crosshairs: true
},
plotOptions: {
spline: {
shadow: false,
animation: false,
lineWidth: 1
},
series: {
color: '#000000',
marker: {
enabled: true,
fillColor: '#006ebe',
lineWidth: 1,
lineColor: '#006ebe',
radius: 3
}
}
},
series: [{
name: '重量',
data: [[Date.UTC(2012, 9, 8, 10, 22, 00), 88.8], [Date.UTC(2012, 9, 10, 10, 22, 00), 87.9], [Date.UTC(2012, 9, 13, 10, 00, 00), 87.4], [Date.UTC(2012, 9, 14, 12, 05), 87.2], [Date.UTC(2012, 9, 16, 10, 00, 00), 87.2], [Date.UTC(2012, 9, 18, 10, 00, 00), 86.8], [Date.UTC(2012, 9, 22, 10, 00, 00), 86.5], [Date.UTC(2012, 9, 25, 10, 00, 00), 86.5], [Date.UTC(2012, 9, 30, 10, 00, 00), 86.4]],
dataLabels: {
enabled: true
}
}]
});
});
});
</script>
</head>
<body>
<script src="Lib/Highcharts-2.2.5/js/highcharts.js" type="text/javascript"></script>
<!-- <script src="../../js/modules/exporting.js"></script>-->
<div id="bg" style="margin: 0; padding: 0;">
<div style="width: 736px; margin: 0 auto; height: 27px;
line-height: 27px; font-family: Microsoft YaHei;
font-size: 14px">

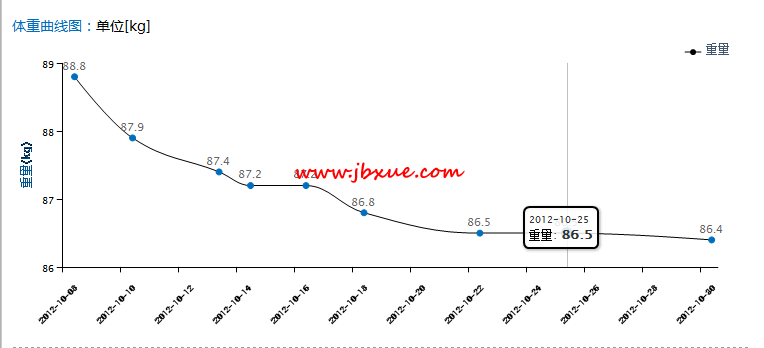

<span style="color: #006ebd;">体重曲线图：</span><span style="font-size: 14px; color: #000000;">单位[kg]</span></div>
<div id="splineContainer" style="width: 736px; height: 310px; margin: 0 auto; padding-bottom: 10px;
border-bottom: 1px dashed #9b9b9b;">
</div>
</div>
</body>
</html>
