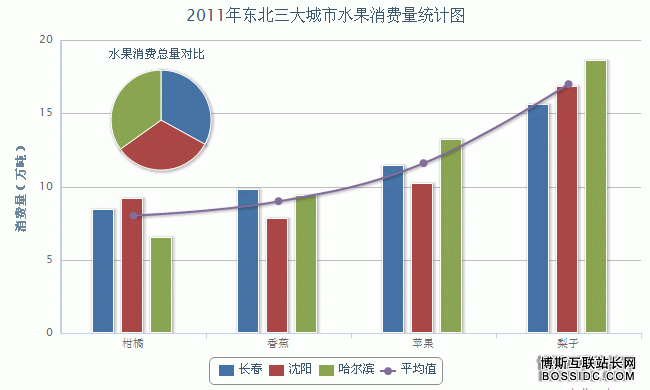

Highcharts教程柱状图、饼状图、曲线图三图合一

var chart;
$(function() {
    chart = new Highcharts.Chart({
        chart: {
            renderTo: 'chart_combo' //关联页面元素div#id
        },
        title: {  //图表标题
            text: '2011年东北三大城市水果消费量统计图'
        },
        xAxis: { //x轴
            categories: ['柑橘', '香蕉','苹果', '梨子'],  //X轴类别
            labels:{y:18}  //x轴标签位置：距X轴下方18像素
        },
        yAxis: {  //y轴
            title: {text: '消费量（万吨）'}, //y轴标题
            lineWidth: 2 //基线宽度
        },
        tooltip: {
            formatter: function() { //格式化鼠标滑向图表数据点时显示的提示框
                var s;
                if (this.point.name) { // 饼状图
                    s = '<b>' + this.point.name + '</b>: <br>' + this.y+ '万吨(' +
twoDecimal(this.percentage) + '%)';
                } else {
                    s = '' + this.x + ': ' + this.y + '万吨';
                }
                return s;
            }
        },
        labels: { //图表标签
            items: [{
                html: '水果消费总量对比',
                style: {
                    left: '48px',
                    top: '8px'
                }
            }]
        },
        exporting: {
            enabled: false  //设置导出按钮不可用
        },
        credits: {
            text: 'helloweba.com',
            href: 'http://www.jb200.com'
        },
        series: [{ //数据列
            type: 'column',
            name: '长春',
            data: [8.4, 9.8, 11.4, 15.6]
        },
        {
            type: 'column',
            name: '沈阳',
            data: [9.2, 7.8, 10.2, 16.8]
        },
        {
            type: 'column',
            name: '哈尔滨',
            data: [6.5, 9.4, 13.2, 18.6]
        },
        {
            type: 'spline',
            name: '平均值',
            data: [8.03, 9, 11.6, 17]
        },
        {
            type: 'pie', //饼状图
            name: '水果消费总量',
            data: [{
                name: '长春',
                y: 45.2,
                color: '#4572A7'
            },
            {
                name: '沈阳',
                y: 44,
                color: '#AA4643'
            },
            {
                name: '哈尔滨',
                y: 47.7,
                color: '#89A54E'
            }],
            center: [100, 80],  //饼状图坐标
            size: 100,  //饼状图直径大小
            dataLabels: {
                enabled: false  //不显示饼状图数据标签
            }
        }]
    });
});
