python/ target=_blank class=infotextkey>python脚本将会生成界面而不会实现其功能. 目的是展示一些这些有名的 GUI 界面在 wxPython 中是怎么完成的。
绝大多数的手册、教程以及电子书都是展示部件的基本用法的。
而当我(作者本人)还是一名初学者时,我总是想知道这些东西是怎么做出来的. 同时我认为大多数新手都会经历这个过程。
文件猎手File Hunter
这是一个文件管理器的骨架. 它山寨的是 Krusader 的样子,Krusader 是 Unix 系统上最好的文件管理器了.
专题教程:wxpython中文教程
完整代码:
#!/usr/bin/python
#coding=utf-8
import wx
import os
import time
ID_BUTTON = 100
ID_EXIT = 200
ID_SPLITTER = 300
class MyListCtrl(wx.ListCtrl):
def __init__(self, parent, id):
wx.ListCtrl.__init__(self, parent, id, style=wx.LC_REPORT)
files = os.listdir('.')
images = ['images/empty.png', 'images/folder.png',
'images/source_py.png', 'images/image.png',
'images/pdf.png', 'images/up16.png']
self.InsertColumn(0, '文件名')
self.InsertColumn(1, '类型')
self.InsertColumn(2, '大小', wx.LIST_FORMAT_RIGHT)
self.InsertColumn(3, '修改日期')
self.SetColumnWidth(0, 220)
self.SetColumnWidth(0, 70)
self.SetColumnWidth(0, 100)
self.SetColumnWidth(0, 420)
self.il = wx.ImageList(16, 16)
for i in images:
self.il.Add(wx.Bitmap(i))
self.SetImageList(self.il, wx.IMAGE_LIST_SMALL)
j = 1
self.InsertStringItem(0, '..')
self.SetItemImage(0, 5)
for f in files:
(name, ext) = os.path.splitext(f)
ex = ext[1:]
size = os.path.getsize(f)
sec = os.path.getmtime(f)
self.InsertStringItem(j, name)
self.SetStringItem(j, 1, ex)
self.SetStringItem(j, 2, str(size) + ' 字节')
self.SetStringItem(j, 3, time.strftime('%Y-%m-%d %H:%M',
time.localtime(sec)))
if os.path.isdir(f):
self.SetItemImage(j, 1)
elif ex == 'py':
self.SetItemImage(j, 2)
elif ex == 'jpg':
self.SetItemImage(j, 3)
elif ex == 'pdf':
self.SetItemImage(j, 4)
else:
self.SetItemImage(j, 0)
if (j % 2) == 0:
self.SetItemBackgroundColour(j, '#e6f1f5')
j += 1
class FileHunter(wx.Frame):
def __init__(self, parent, id, title):
wx.Frame.__init__(self, parent, id, title)
self.splitter = wx.SplitterWindow(self, ID_SPLITTER,
style=wx.SP_BORDER)
self.splitter.SetMinimumPaneSize(50)
p1 = MyListCtrl(self.splitter, -1)
p2 = MyListCtrl(self.splitter, -1)
self.splitter.SplitVertically(p1, p2)
self.Bind(wx.EVT_SIZE, self.OnSize)
self.Bind(wx.EVT_SPLITTER_DCLICK, self.OnDoubleClick,
id=ID_SPLITTER)
filemenu = wx.Menu()
filemenu.Append(ID_EXIT, "退出(&x)", "关闭程序")
editmenu = wx.Menu()
netmenu = wx.Menu()
showmenu = wx.Menu()
configmenu = wx.Menu()
helpmenu = wx.Menu()
menubar = wx.MenuBar()
menubar.Append(filemenu, "文件(&F)")
menubar.Append(editmenu, "编辑(&E)")
menubar.Append(netmenu, "网络(&N)")
menubar.Append(showmenu, "显示(&S)")
menubar.Append(configmenu, "配置(&C)")
menubar.Append(helpmenu, "帮助(&H)")
self.SetMenuBar(menubar)
self.Bind(wx.EVT_MENU, self.OnExit, id=ID_EXIT)
toolbar = self.CreateToolBar(wx.TB_HORIZONTAL | wx.NO_BORDER
| wx.TB_FLAT | wx.TB_TEXT)
toolbar.AddSimpleTool(10, wx.Bitmap('images/previous.png'),
"前一")
toolbar.AddSimpleTool(20, wx.Bitmap('images/up.png'),
"上一级目录")
toolbar.AddSimpleTool(20, wx.Bitmap('images/home.png'), "主目录")
toolbar.AddSimpleTool(20, wx.Bitmap('images/refresh.png'),
"刷新")
toolbar.AddSeparator()
toolbar.AddSimpleTool(20, wx.Bitmap('images/write.png'),
"编辑器")
toolbar.AddSimpleTool(20, wx.Bitmap('images/terminal.png'),
"终端")
toolbar.AddSeparator()
toolbar.AddSimpleTool(20, wx.Bitmap('images/help.png'), "帮助")
toolbar.Realize()
self.sizer2 = wx.BoxSizer(wx.HORIZONTAL)
button1 = wx.Button(self, ID_BUTTON + 1, "F3 查看")
button2 = wx.Button(self, ID_BUTTON + 2, "F4 编辑")
button3 = wx.Button(self, ID_BUTTON + 3, "F5 复制")
button4 = wx.Button(self, ID_BUTTON + 4, "F6 移动")
button5 = wx.Button(self, ID_BUTTON + 5, "F7 新建目录")
button6 = wx.Button(self, ID_BUTTON + 6, "F8 删除")
button7 = wx.Button(self, ID_BUTTON + 7, "F9 重命名")
button8 = wx.Button(self, ID_EXIT, "F10 退出")
self.sizer2.Add(button1, 1, wx.EXPAND)
self.sizer2.Add(button2, 2, wx.EXPAND)
self.sizer2.Add(button3, 3, wx.EXPAND)
self.sizer2.Add(button4, 4, wx.EXPAND)
self.sizer2.Add(button5, 5, wx.EXPAND)
self.sizer2.Add(button6, 6, wx.EXPAND)
self.sizer2.Add(button7, 7, wx.EXPAND)
self.sizer2.Add(button8, 8, wx.EXPAND)
self.Bind(wx.EVT_BUTTON, self.OnExit, id=ID_EXIT)
self.sizer = wx.BoxSizer(wx.VERTICAL)
self.sizer.Add(self.splitter, 1, wx.EXPAND)
self.sizer.Add(self.sizer2, 0, wx.EXPAND)
self.SetSizer(self.sizer)
size = wx.DisplaySize()
self.SetSize(size)
self.statusbar = self.CreateStatusBar()
self.statusbar.SetStatusText(os.getcwd())
self.Center()
self.Show(True)
def OnExit(self, e):
self.Close()
def OnSize(self, event):
size = self.GetSize()
self.splitter.SetSashPosition(size.x / 2)
self.statusbar.SetStatusText(os.getcwd())
event.Skip()
def OnDoubleClick(self, event):
size = self.GetSize()
self.splitter.SetSashPosition(size.x / 2)
app = wx.App(0)
filehunter = FileHunter(None, -1, '文件猎手')
app.MainLoop()

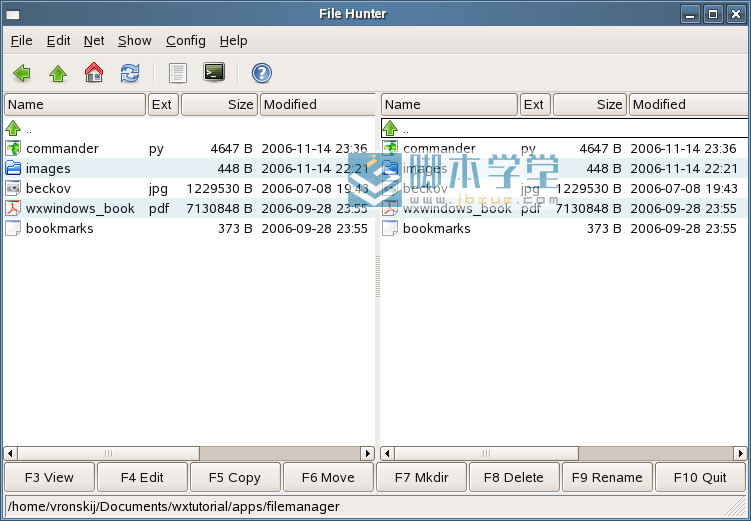

如在分割窗(splitter)部件上双击,或缩放窗口,都将让“文件猎手”程序分成两个同样大小的部分。
如图:
文件猎手
